Pig farm PVC fence application guide: from material performance to farrowing pen practice

1 Material and core performance of PVC fence
In modern intensive pig farms, PVC fences have become an indispensable key equipment. Their excellent physical properties and environmental sanitation advantages provide a solid guarantee for the healthy growth of pigs. This enclosure board designed specifically for animal husbandry uses polyvinyl chloride (PVC) as the core raw material. It is modified by adding stabilizers, impact agents and other auxiliary materials to form a functional material with multiple excellent properties. From the perspective of material composition, PVC fences mainly adopt a hollow board structure design. The closed air layer formed inside gives the board excellent thermal insulation performance, which is particularly important for newborn piglets whose body temperature regulation ability is not yet perfect29.

In terms of physical properties, PVC fences show multiple advantages:

Lightweight and strong: Although the density is only 1.45-1.56g/cm³, through structural optimization design, its compression and impact resistance fully meet the needs of the breeding environment

Waterproof and moisture-proof: Even in high humidity environments, there will be no deformation or corrosion, which is particularly suitable for pig farms with frequent flushing

Flame retardant properties: The flame retardant value reaches the national B2 fire protection standard (≥30), significantly reducing the risk of fire

Corrosion resistance: It can withstand the erosion of common acid and alkali substances and disinfectants in pig farms

Thermal insulation: It effectively maintains the internal temperature of the barn and creates a stable environment for piglets Warm and comfortable small environment 2710

In terms of size specifications, PVC fences have formed a standardized production system:

Thickness: Common specifications are 30mm or 35mm, and some thickened types can reach 60mm

Width: Modular design, common width specifications such as 250mm, 500mm, 516mm, 600mm, etc.

Height: Sow farrowing beds are usually 500mm (such as PVC piglet baffles), and nursery pens are mostly 600mm

Length: Supports customized production to meet the diverse needs of pig farms of different sizes 910

Table: Main performance parameters and characteristics of PVC fences

Characteristic category Specific parameters Application advantages
Physical properties Thickness 30-35mm, density 1.45-1.56g/cm³ Lightweight and easy to install, stable structure and impact resistant
Environmental tolerance Waterproof and moisture-proof, acid and alkali corrosion resistant, flame retardant grade B2 Adapt to humid environment, tolerate disinfection and cleaning
Thermal performance Hollow structure has low thermal conductivity and strong thermal insulation Maintains suitable temperature for piglets (about 30℃)
Sanitary and safe Smooth surface without pores, non-toxic and pollution-free Easy to clean and disinfect, blocking the spread of pathogens
PVC fences are also excellent in chemical stability. The material does not contain harmful heavy metals such as lead, meets the safety standards for food contact materials, and ensures safety when in direct contact with pigs. In actual use, it only needs to be rinsed with clean water to restore the clean state, without special maintenance, which greatly reduces the cost of manual maintenance. According to measured data, the life of high-quality PVC fences can reach 8-10 years under normal use conditions, reflecting excellent durability and economy810.

2 Application of PVC fences in sow farrowing beds

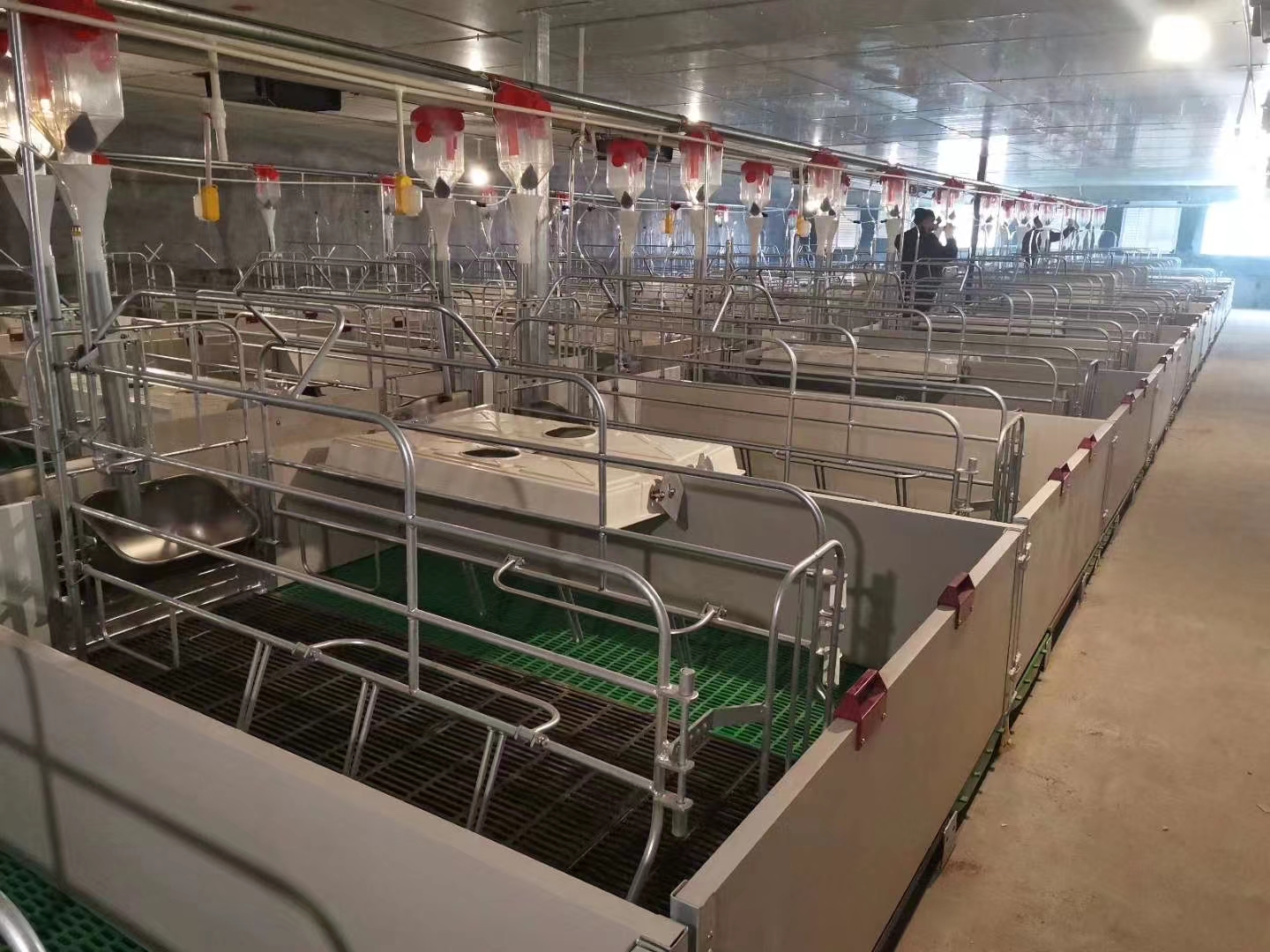

In modern sow farrowing rooms, the application of PVC fences has completely revolutionized the traditional farrowing environment management method, creating a safer and more comfortable living space for sows and newborn piglets. In terms of application, PVC fences are mainly configured around the farrowing bed to form a closed or semi-closed protective fence, especially in the piglet activity area, to build a warm and clean "baby room". This application is not a simple physical isolation, but a comprehensive functional design: the upper edge of the fence is tightly embedded with the galvanized steel pipe frame, and the lower part is seamlessly connected with the plastic or cast iron slatted floor, forming a whole system with a stable structure and no sanitary dead corners17.

2.1 Installation method and structural design
Modular assembly: PVC enclosures are connected to hot-dip galvanized brackets through special slots and can be quickly assembled without welding

Flexible adjustment: The plug-in design allows the size and height to be adjusted according to the actual needs of the pig farm

Combined application: Sows usually retain galvanized fences to ensure ventilation needs, while the piglet area uses full PVC enclosures

Typical configuration: For example, in the European sow farrowing bed (2.4×3.6m specifications), the piglet area is enclosed on three sides to form a U-shaped protective space679

2.2 Functional advantages and application effects
Insulation and constant temperature: The air barrier inside the PVC hollow board effectively blocks the temperature fluctuations in the delivery room, and keeps the temperature of the piglet activity area stable at a suitable range of about 30°C, which is significantly better than the insulation effect of traditional metal railings

Blocking the source of disease: Forming a physical barrier, effectively blocking the cross-transmission of pathogens between different delivery beds, reducing the probability of transmission of common pathogens such as Escherichia coli

Safety guarantee: The 35mm high smooth fence avoids the accident of sows accidentally crushing piglets, and provides a safe haven for weak piglets

Environmental optimization: The enclosure structure reduces the invasion of draughts and reduces the incidence of diarrhea in piglets. At the same time, the light-colored board surface helps to observe the activity status of piglets157

Based on the actual application scenario For example, in a closed nursery area composed of PVC fences, the following are usually provided:

Incubator: Made of PVC boards of the same material, forming a double-layer insulation structure

Heating equipment: 150W heat-insulating lamps are hung above the fences, and heat is effectively retained in the piglet activity area

Drinking system: Stainless steel water bowls are fixed at the openings of the fences

Feeding area: PVC fences are designed with special openings at the trough position to facilitate the entry and exit of piglets13

This comprehensive application model has significantly improved the survival rate of newborn piglets, especially in cold northern regions or high humidity environments in rainy seasons. PVC fence farrowing beds effectively solve the problem of piglet body temperature loss caused by traditional metal fences, and have become the core technical equipment for modern farrowing room management57.

3 Key application value of PVC fences in nursery pens

When piglets enter the critical period of nursery after weaning, PVC fences continue to play an irreplaceable role, building a clean, warm and safe growth space in the nursery pen system. In terms of application, PVC fences mainly form the surrounding walls of the nursery pen, and together with slatted floors, automatic feeding equipment, drinking water systems, etc., they form a fully functional breeding environment. Typical nursery pens (such as 3×2.4×0.6m specifications) use 600mm high PVC fences to form closed fences, and the thickness of the board is usually kept at 35mm, which not only ensures structural strength but also maintains good thermal insulation performance. The fences are connected and combined by hot-dip galvanized metal brackets, which can be quickly disassembled and assembled without welding, greatly improving the turnover efficiency of the pens36.

3.1 Nursery pen structure and function realization
Three-dimensional protection system: PVC fences form a vertical protection surface to effectively prevent piglets from direct contact with the outside world

Slatted floor coordination: The plastic slatted manure board is precisely embedded with the edge of the fence to achieve automatic drainage of manure

Support structure: The bottom is supported by Fiberglass Beams to bear the weight of the plastic floor and piglets

Equipment integration: The preset openings in the fence are convenient for installing stainless steel waterers and automatic feeding troughs36

3.2 Core functional advantages
Sanitary protection: PVC fence completely isolates piglets from direct contact with the ground, blocking the ground transmission pathways of common diseases such as coccidiosis. At the same time, the smooth surface is not easy to attach pathogens, and it dries quickly after flushing

Temperature maintenance: Under low temperature conditions in winter, the internal temperature of the PVC fence is 3-5℃ higher than that of traditional metal fences, significantly reducing diarrhea problems caused by temperature stress

Safety guarantee: The closed system formed by the plastic slatted floor and the PVC fence avoids the risk of piglets' limbs being stuck, and the soft surface protects the piglets' skin and hooves from scratches

Behavior management: Reasonable enclosure height (600mm) prevents piglets from jumping over the fence and escaping. At the same time, the fully enclosed design reduces mutual interference between groups and reduces fighting stress3610

It is particularly worth noting that the PVC fence adopts the size design concept of whole-litter transfer. For example, the 2.4×1.8m nursery fence can accommodate a litter of about 10 weaned piglets. This design avoids mixed group conflicts between piglets from different litters and reduces stress responses during the transfer process. Insulation covers or infrared heat lamps can be flexibly installed above the fences to form local temperature zones for piglets to choose their own resting positions, meeting their behavioral needs610.

In actual operation, PVC fence nursery pens show significant management advantages: its modular structure supports rapid transfer of the entire pen, reducing pig catching operations; the surface can be directly washed with a high-pressure water gun, and it will not cause corrosion when used with common disinfectants; damaged single boards can be replaced independently to reduce maintenance costs. According to actual application data statistics, the survival rate of piglets in the nursery stage using PVC fence systems has increased by an average of 5-8%, and the feed conversion efficiency has improved by about 10%, fully reflecting its core value in modern pig production.
